9 Functions in 1 device. Built in OPM OLS VFL Event Map RJ45 Ethernet Cable Sequence Distance Tracker. One-click automatic test, automatic file saving, automatic analysis of test results.
Portable, rugged, lightweight, Easy to use.
More accurate testing results and better repeatability.
Automatic Pulse Width Control design to ensure a convenient operation.
Item NO.:
FTK-812Order(MOQ):
1Payment:
T/T, Paypal, Western Union, Moneygram, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 3 Working DaysProduct Overview

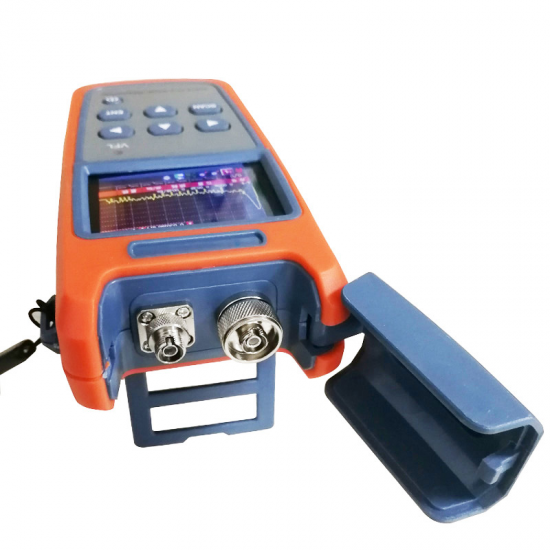

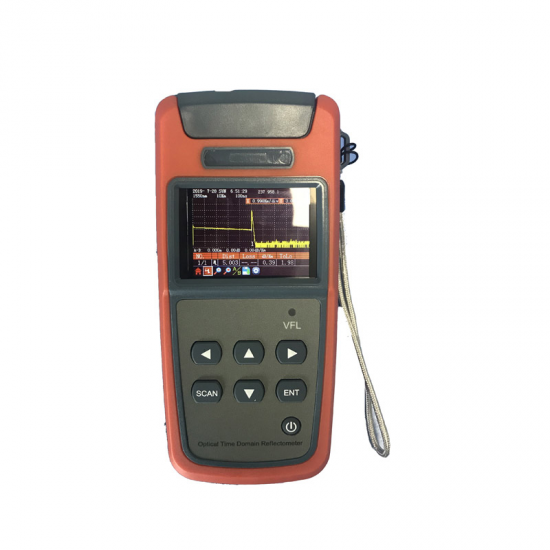

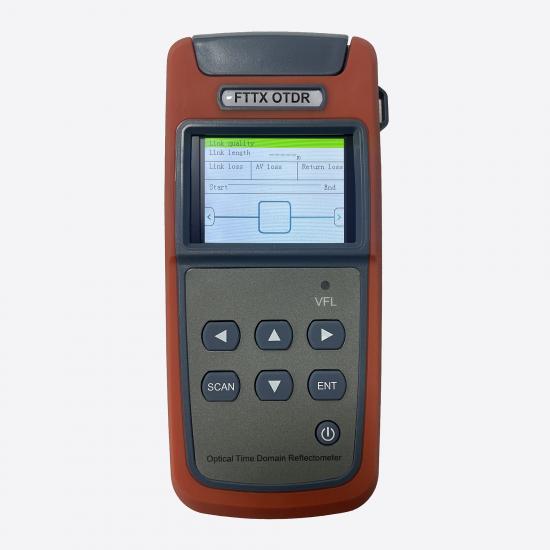

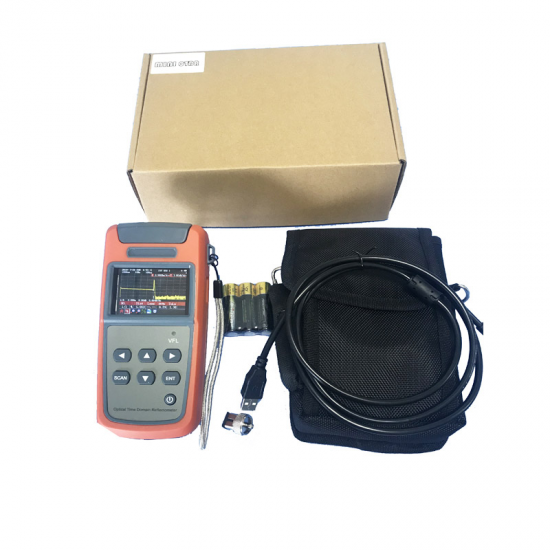

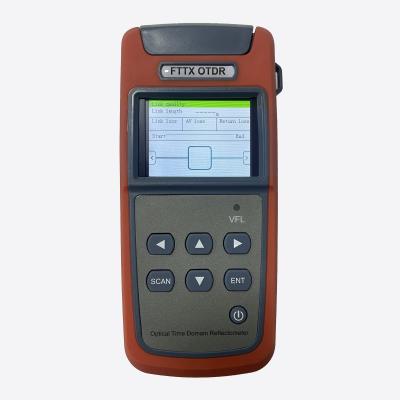

Mini OTDR is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the OTDR fiber ranger detect fiber faults location more accurate and easier.
Main Characteristics
Technical Specifications
|
Model |
MINI OTDR |
|
Wavelength |
1310nm or 1550nm |
|
Type of fiber |
9/125um SM Fiber |
|
Connector |
FC、SC/PC |
|
Dynamic Range |
22dB |
|
Pulse Width |
5ns~ 8000ns，Auto |
|
Measurement |
m |
|
Event blind zone |
3m |
|
Attenuation blind |
10m |
|
Range accuracy |
±（1m+2×10-4×distance） |
|
OPM |
-50~+26dBm |
|
850/1300/1310/1490/1550/1625nm |
|
|
VFL |
≥10mW |
|
Optical Light Source |
1550nm |
|
iLOM(Event Map)
|
|
|
Power Supply |
3pcs of Dry battery |
|
Battery Work time |
≥2000 times measure |
|
Save Data |
＞500 |
|
Work Temperature |
-5~40℃ |
|
Save Temperature |
-10~60℃ |
|
Humidity |
0~85%（no condensation） |
|
Net weight |
300g |
