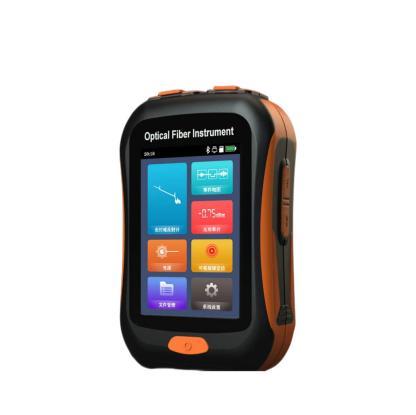

Live Test Mini OTDR 1550nm Optical Reflectometer

compact and easy to carry
1550nm wavelength active fiber live test

  • Item NO.:

    S280
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Western Union, Moneygram, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 3 Working Days
  • Product Detail
Intruction

The S280 is used to measure the length, loss, connection quality and other parameters of the optical fiber. lt can easily test the breakpoint. bend, and loss point of the optical fiber link. It is suitable for line maintenance and emergency repair testing by installation and main- tenance personnel.

Features

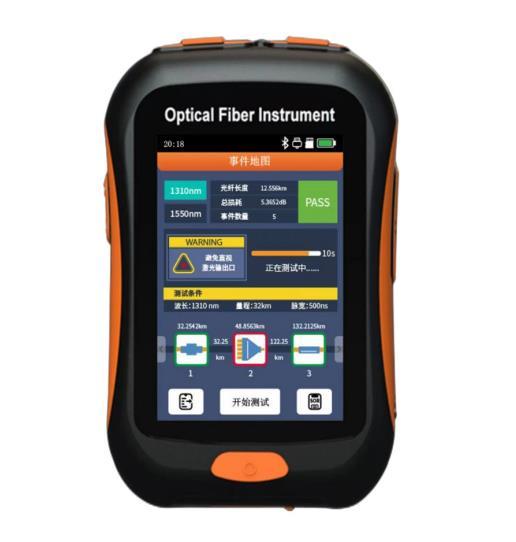

The S280 mini optical time domain reflectometer is adopts a 3.5-inch high-definition touch screen. supports multi-touch and smooth operation Internal integration of OTDR, event map, optical power, red light, flashlight and other functions in one, to meet various test needs in different occasions. Among them, the oTDr function adopts 1550nm wavelength and built-in high-efficiency wavelength isolator. lt can perform optical test on 1490nm and 1577nm links. It supports up to about +10dBm with optical test capability, and the maximum measurement range is 80km.


Specification

Dynamic Range: 20dB
Test Range:100m~80km
Wavelength: 1550(±20nm)
OTDR/OLS Connector: SC/UPC
Pulse Width: 5ns~20μs
Measurement Mode: Real time, average, automatic
Attenuation Dead Zone: 10m
Event Dead Zone: <2.5m
Sampling Point: 20000
OPM: +26~-50dBm, 850/1300/1310/1490/1550/1625/1650nm, 2.5mm universal connector
VFL: 10mW, 2.5mm universal connector
LCD: 3.5-inch high-definition touch screen
Type-C x1
Self-calibration Function: Support
Working Temperature: 0℃~50℃
Storage Temperature: -20℃~70℃
Relative Humidity: <90%
Size(H*W*D): 126mm*80mm*37mm
Weight: 200g
