Handheld Mini OTDR Fiber Optic Reflectometer S291

Pro mini OTDR Fiber Optic Reflectometer with Functions VFL OLS OPM.

It is widely used in FTTX, secondary backbone network engineering construction, aintenance and emergency repair test, and production measurement of optical fiber and cable

Item NO.:
S291
Order(MOQ):
1
Payment:
T/T, Paypal, Western Union, Moneygram, etc.
Product Origin:
China
Color:
Standard
Shipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
Lead Time：
in 2 Working Days

Inquire Now

Product Detail

Introduction

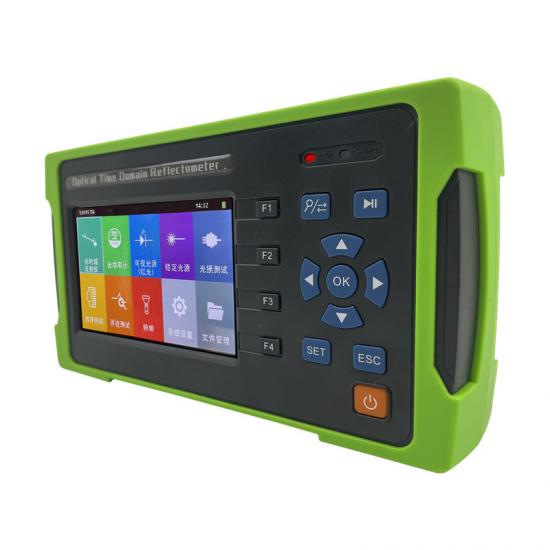

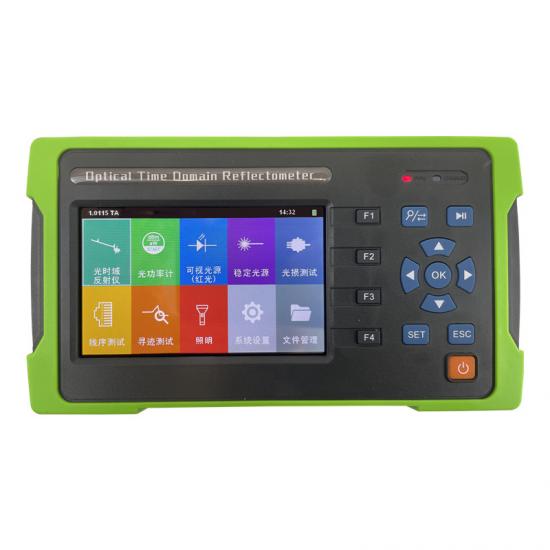

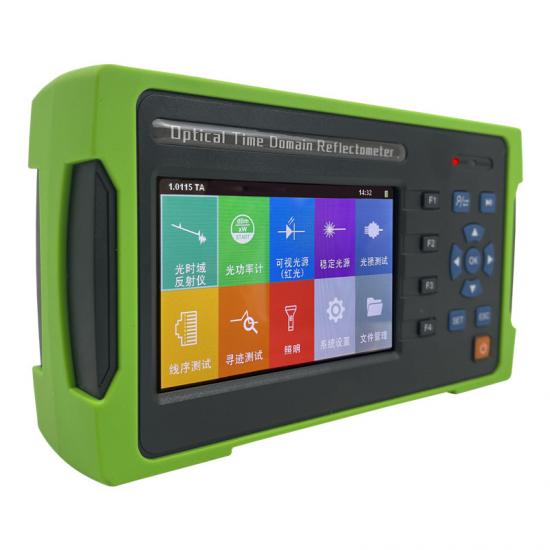

S291 MiniPro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with colorful LCD screen, new plastic shell design, shock-proof and drop -proof.

Features

Measurement distance: 60km
Touching screen
Test record can be saved as so format
Standard Function: OTDR/Optical Power Meter/ Optical Light Source/ Visual Fault Locator/Optic Loss/ Light Optional Function: Line Order/ Tracing Test
Editable file name and lineNo.
Support upgrade
Quick boot, it takes only 2 seconds to test

Funtions

OTDR: 0-60km
Optical Power Meter : -70~+10dbm or -50~+26dbm
Visual Fault Locator : >=10mw
Optical Light Source : 1310/1550nm ,>-5dBm
Optic Loss
Line Order (Optional)
Tracing Test (Optional): Can track the direction of the found line.
LED lighting function, dark environment construction is more convenient

Specifications

OTDR
Wavelength(nm)	1310/1550nm	1310/1550nm		1550nm	1610nm
Dynamic Range	24/22dB	26/24dB		22dB	22dB
Active Test	no	no		yes	yes
Measurement Distance	0-60 km
Type of Fiber	9/125um SM
Type of Connectors	FC/PC/; SC/PC (FC/APC SC/APC--Optional)
Peak Value of laser	>=30mW
Unit	Meter/ inch/ mile
Dead Zone of Reflection	2m
Dead Zone of attenuation Event	12m
Accuracy Distance (Reflection Event)	About ±(1m+2 10(-4) distance)
Storage of records	200 groups
Visual Fault locator（VFL）
Wavelength (nm)	650nm
Output power	>=10mW
Mode	CW，1Hz，2Hz
Fiber type	SM
Optical Power Meter
Measurement range dBm	-70～+10 dBm		-50～+26 dBm
Wavelength range（nm）	800～1650
Calibrated wavelength	850、1300、1310、1490、1550、1625
Detector	InGaAs
Accuracy	<±3% （-10dBm、22℃）
Resolution	Linearity：0.1%，Non-linearity：0.01dBm
Connector	Changeable FC/PC SC/PC ( ST as Optional)
Optical Light Source
Emitter	FP-LD
wavelength (nm)	1310/1550nm
Connector	FC/PC（SC/ST as optional）
Output power	≥-5dBm
Output stability(dBm)	±0.04@20℃@15min
Modulation	CW/270Hz/1KHz/2KHz
Fiber type	SM
Optic Loss
Connector	FC/ SC
Test Range	0-30dB
Accuracy	10%
Others
LCD	3.97inch,800*480pixels, IPS screen
Battery	7.4V/4400mAH Lithium-ion battery, >5000 tests
Temperature	Work temperature: -5 ~ 50 ° C, storage temperature: -10 ~ 60 ° C
Humidity	0～85%(Non-condensing)
Dimensions（mm）	180×100×45
Weight(g)	480
Standard Function	OTDR, OPM, OLS, VFL, Optic Loss,Light
Optional Function	Line Order, Tracing Test

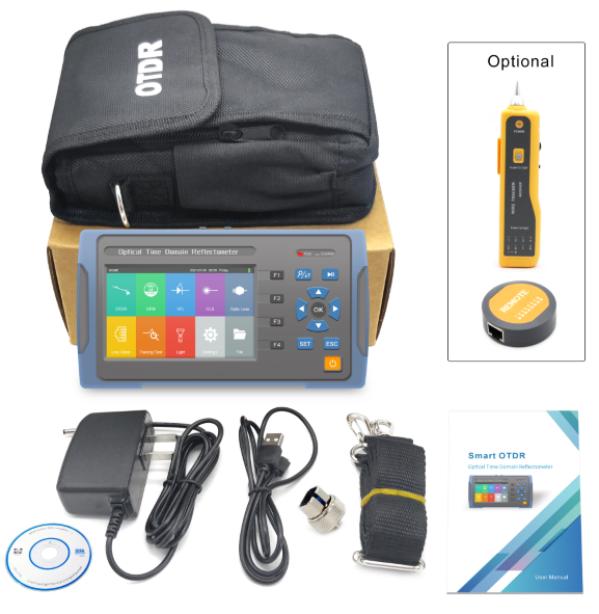

Packing List

NO	Name	Qty
Standard accessories
1	OTDR with FC/UPC connector	1
2	AC/DC Charger	1
3	CD (software and user manual)	1
4	User manual	1
5	Test Report	1
6	Softcase	1
Optional Accessories
1	SC /ST connector for OTDR Port	1
2	SC/ST Connector for OPM port	1
3	Receiver(Optional Function)	1
4	Network test port	1

Touch Screen Mini OTDR with VFL
