9 Functions in 1 device. Built in OPM OLS VFL Event Map RJ45 Ethernet Cable Sequence Distance Tracker. One-click automatic test, automatic file saving, automatic analysis of test results.
3.5 inch color LCD
portable design and easy to carry.
Item NO.:
S780Payment:
T/T, Paypal, Western Union, Moneygram, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 3 Working Days

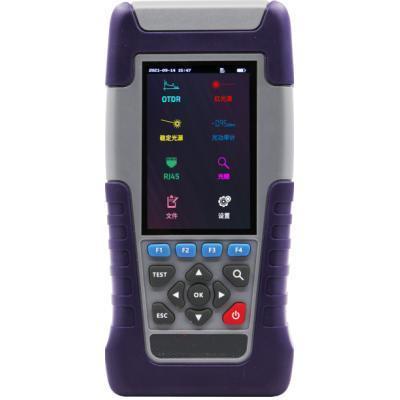

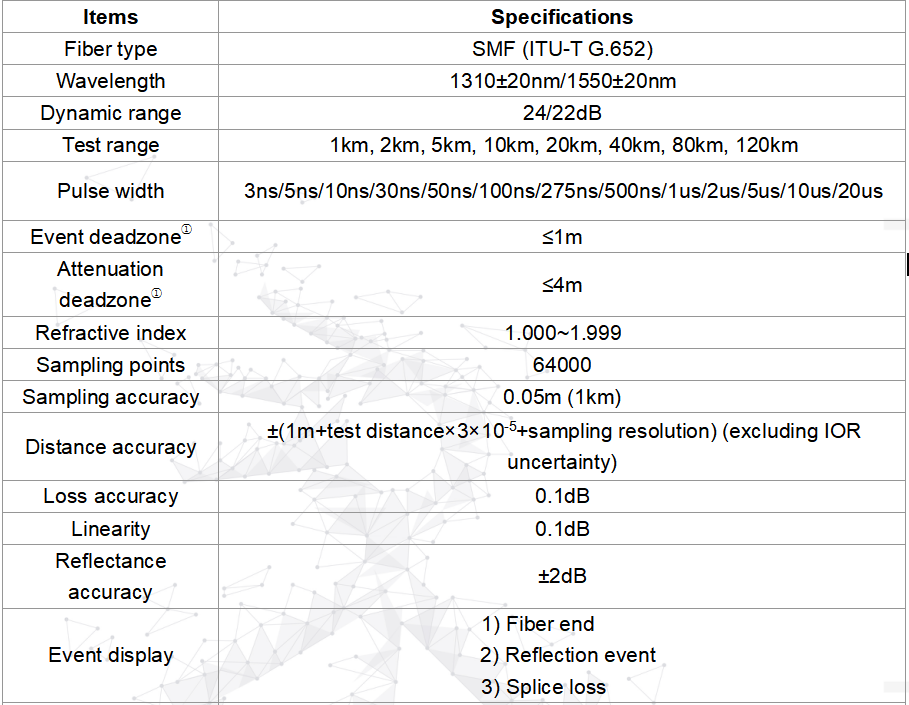

S780 Handheld OTDR is the latest smart OTDR of SeikoFire. Although it is a handheld OTDR, it can measure the length of optical fiber near 100km. In short distance optical fiber testing, with the excellent 1m/4m deadzone performance, all kinds of continuous connectors, attenuation loss and other events can be clearly distinguished.

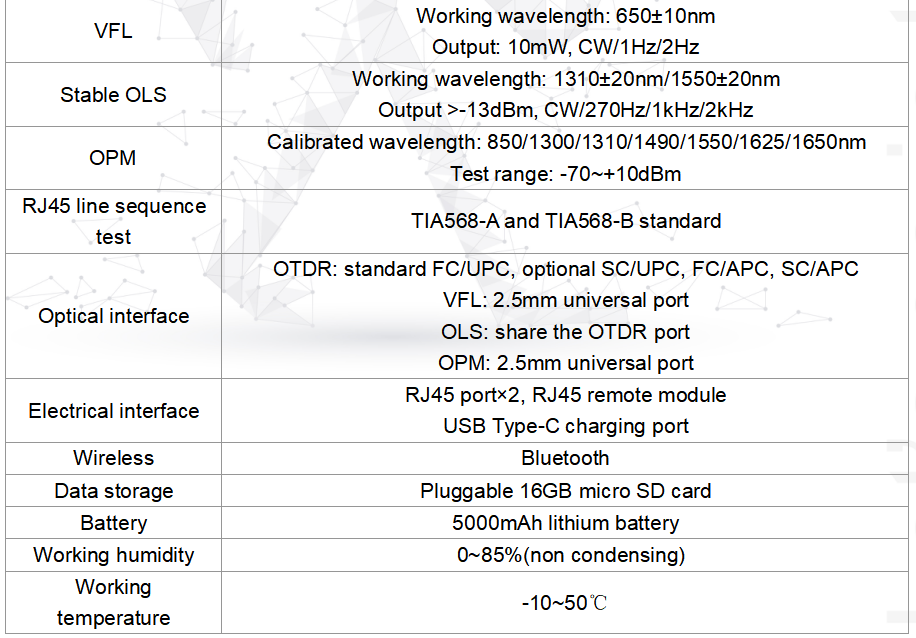

S780 is equipped with 1310nm and 1550nm dual wavelength OTDR, optical power meter, stable laser source, 10mW VFL, RJ45 line sequence measurement and other functions. At the same time, it has bluetooth wireless connection and supports pairing with mobile phones.
Features
9 Functions in 1 device. Built in OPM OLS VFL Event Map RJ45 Ethernet Cable Sequence Distance Tracker. One-click automatic test, automatic file saving, automatic analysis of test results.
Latest 9-in-1 functions mini OTDR Tester. Cost-effective optical network analysis test equipment, with the features of lightweight, easily useable.
12-in-1 function 100km Range Multi-touch capacitive screen Support New gesture magnification function and screen capture
Portable, rugged, lightweight, Easy to use. More accurate testing results and better repeatability. Automatic Pulse Width Control design to ensure a convenient operation.
Pro mini OTDR Fiber Optic Reflectometer with Functions VFL OLS OPM. It is widely used in FTTX, secondary backbone network engineering construction, aintenance and emergency repair test, and production measurement of optical fiber and cable
compact and easy to carry 1550nm wavelength active fiber live test
Smart Series Optical Time Domain Reflectometer adopts a 3.5-inch color capacitive touch screen, Which is simple to operate. It integrates eight major functions such as OTDR, Event map, Stable light source, optical power meter, red light source, Network Line Sequence Test, line finding and lighting. Simple parameter setting and intelligent measurement make the operation more simple and efficient. The model is small and light, easy to carry. The wireless charging function is supported, and the large capacity battery ensures 10 hours of ultra long time measurement and 20 hours of ultra long standby, providing guarantee for field testing.
SH-D105 large diameter optical fiber cleaver can be mainly used for cutting large diameter fibers and optical fiber combiner. Users can easily cut different types of optical fibersand combiners by setting the pulling force of the optical fiber and propelling the blade in advance. The machine not only has the cutting stability needed for production, but also has the characteristics of flexible debugging needed for research and development.
