Covers the general requirements and performance of cable for GYXTW. Offered including optical characteristics, mechanical, characteristics and geometrical characteristics and etc.
Material and structure are uniform, good resistance to vibration fatigue.
Short circuit current has small effect on the optical fiber transmission properties,Good anti-lightning performance.
Payment:
T/T, Paypal, Credit Card, Western Union, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 2 Working DaysIntroduction

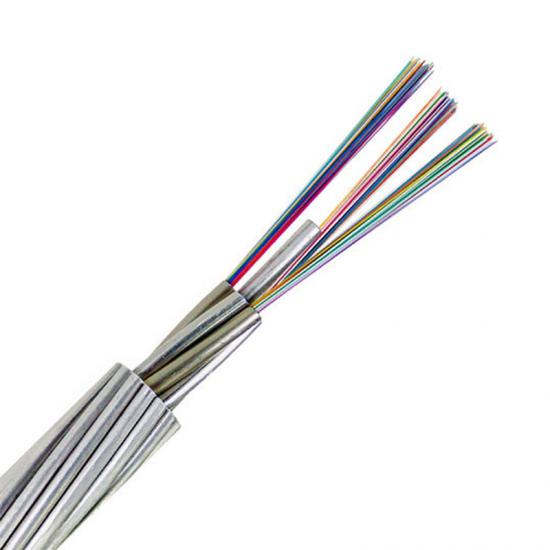

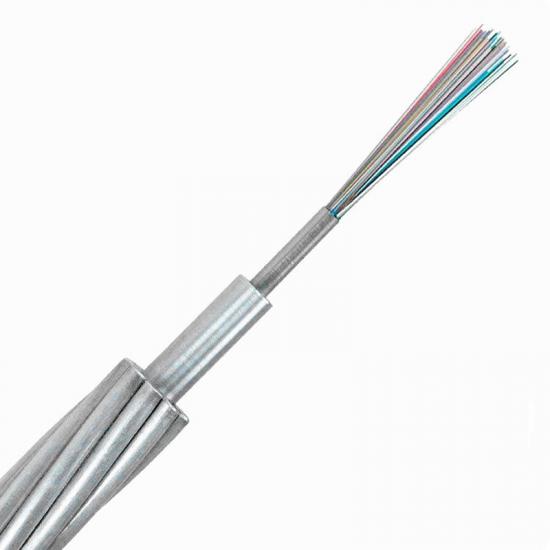

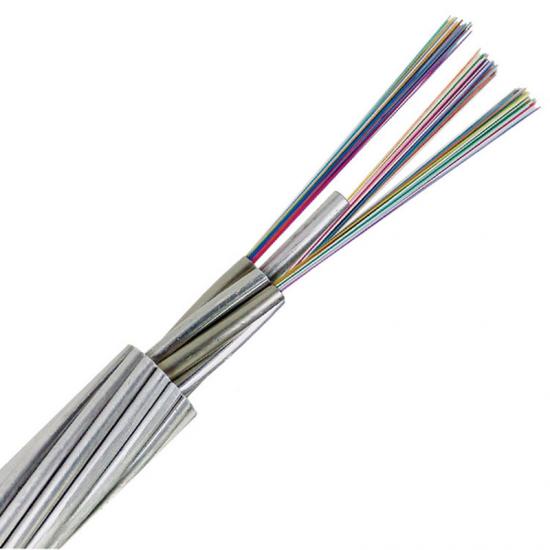

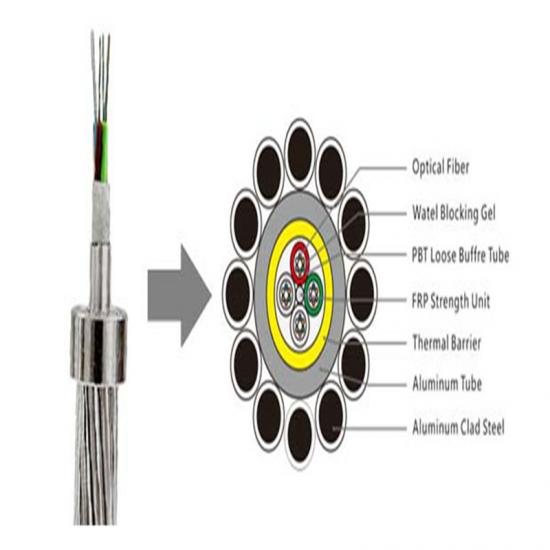

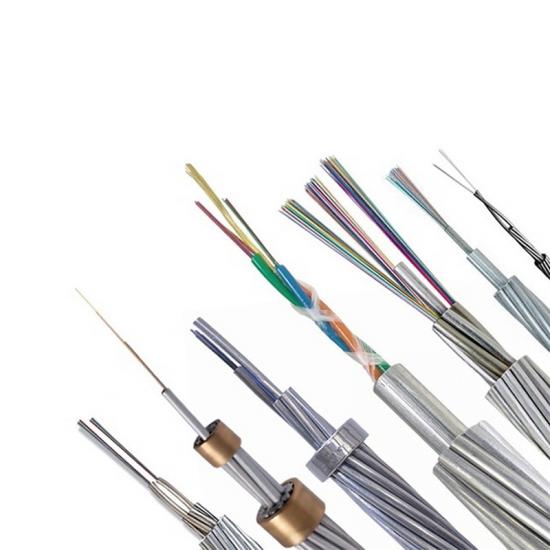

OPGW is a type of cable structure with composite of optical transmission and overhead ground
wire for power transmission. Its working in power transmission line both as optical fiber cable
and overhead ground wire which can provide protection of lightning strike and conducting short

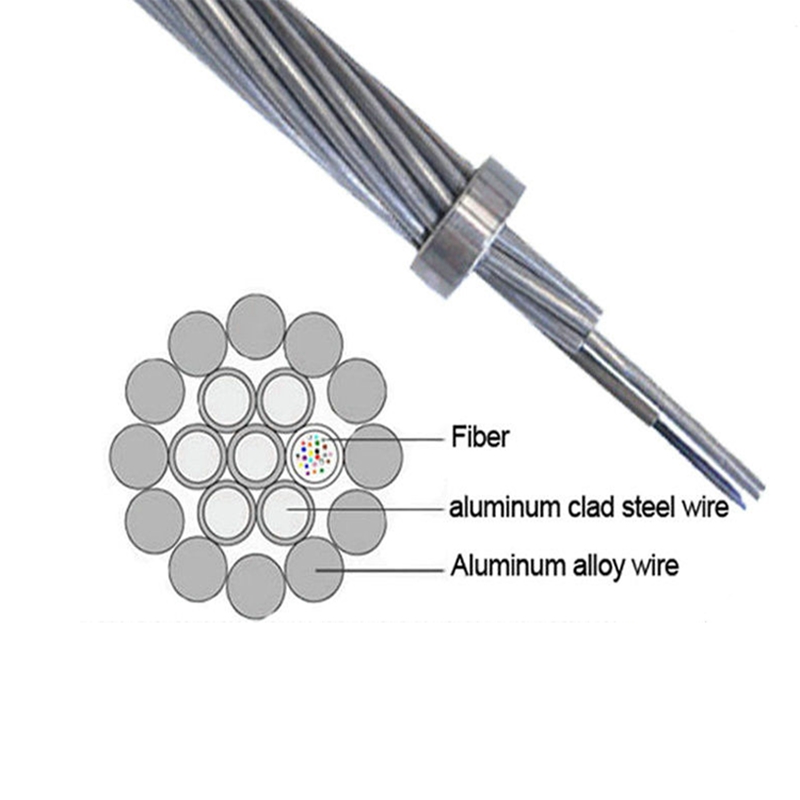

circuit currency. The OPGW consist of stainless steel tube optical unit, aluminum cladding steel
wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements.
Applications
Structural parameters
|
Cable model |
OPGW-60 |
OPGW-70 |
OPGW-90 |
OPGW-110 |
OPGW-130 |
|
Number /diameter(mm) of stainless steel tube |
1/3.5 |
2/2.4 |
2/2.6 |
2/2.8 |
1/3.0 |
|
Number /diameter of AL wire(mm) |
0/3.5 |
12/2.4 |
12/2.6 |
12/2.8 |
12/3.0 |
|
Number /diameter of ACS wire(mm) |
6/3.5 |
5/2.4 |
5/2.6 |
5/2.8 |
6/3.0 |
|
Diameter of Cable (mm) |
10.5 |
12.0 |
13.0 |
14.0 |
15.0 |
|
RTS(KN) |
75 |
45 |
53 |
64 |
80 |
|
Cable weight (kg/km) |
415 |
320 |
374 |
432 |
527 |
|
DC resistance(200C W/km) |
1.36 |
0.524 |
0.448 |
0.386 |
0.327 |
|
Modulus of elasticity(Gpa) |
162.0 |
96.1 |
95.9 |
95.6 |
97.8 |
|
coefficient of Linear thermal expansion (1/×10-6) |
12.6 |
17.8 |
17.8 |
17.8 |
17.2 |
|
Short circuit capacity (kA²s) |
24.0 |
57.3 |
78.9 |
105.8 |
150.4 |
|
Max. operation temperature (C) |
200 |
200 |
200 |
200 |
200 |
