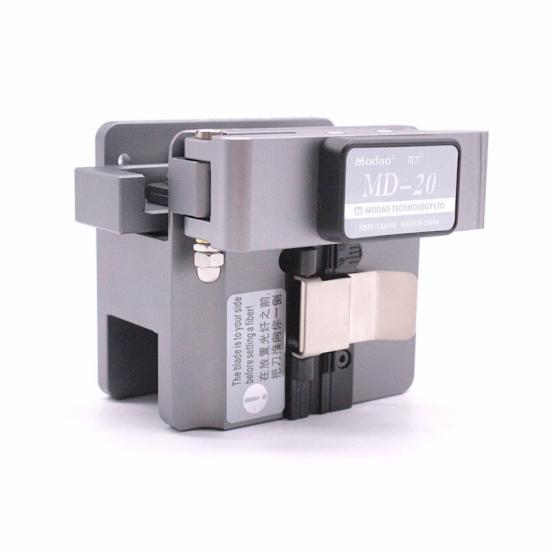

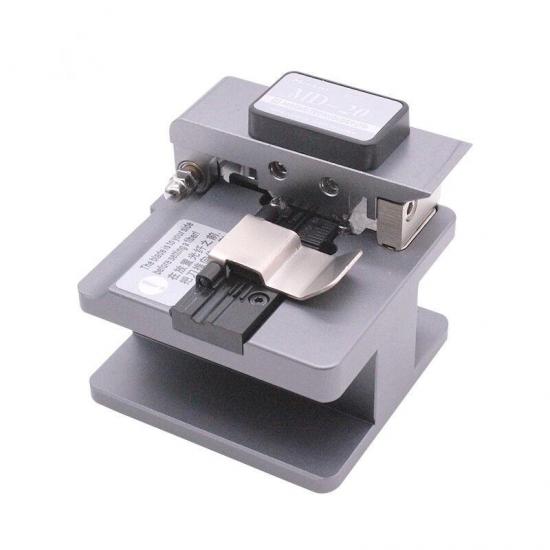

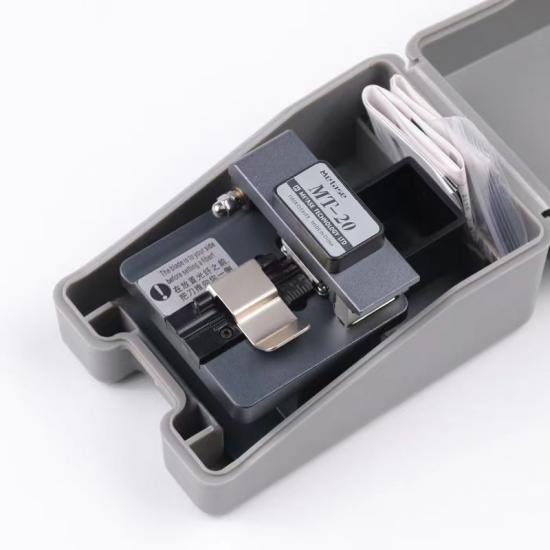

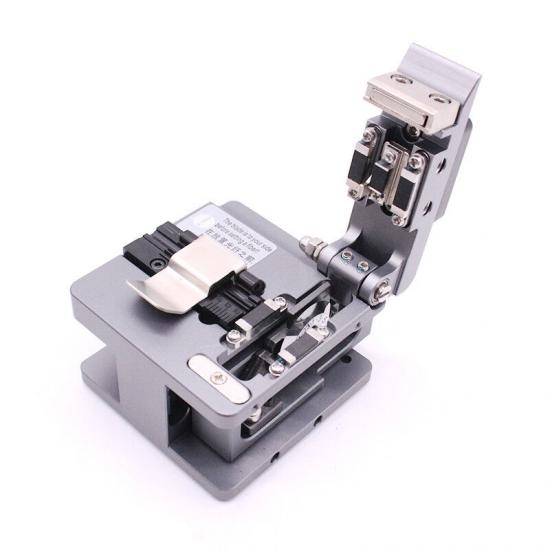

Cost-effective FTTH Mini Fiber Cleaver MT-20

High precision fiber cutting.
Lightweight and hand held design.
Smart design of pressure pads preventing the fiber from damage by the return of the blade carriage.

  • Item NO.:

    MT-20
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail
Introduction

High precision optical fiber cleaver MT-20 is used for precision cutting single core fiber tool, suitable for FTTH optical fiber to the home. Cutting angle is smaller and more precise ,easy to operate, do not need special skills. Under the condition of guarantee stability at the same time , more important is relatively affordable price, optional fiber collector, convenient installation.
Features

  • Compact design
  • High reliability
  • Good cleaving performance
  • Maximum 24 Fiber count
  • 48,000 cleave per blade
Application
  • FTTx construction
  • Optical network construction
  • LAN, WAN, and Metro Networks
  • CATV Networks
Specification

Fiber diameter

125µm

Outercoat diameter

0.25mm-0.9mm

Fiber type

Single tube fiber and Ribbon fiber (exchangeable)

Cleaved length

9-24mm

Cleaved angle

≤0.8°

blade life

48000

Mode

Semiautomatic

Fiber collector

Available

Dimension

58mm(W)×68(D)mm×58mm(H)

Weight

270g
