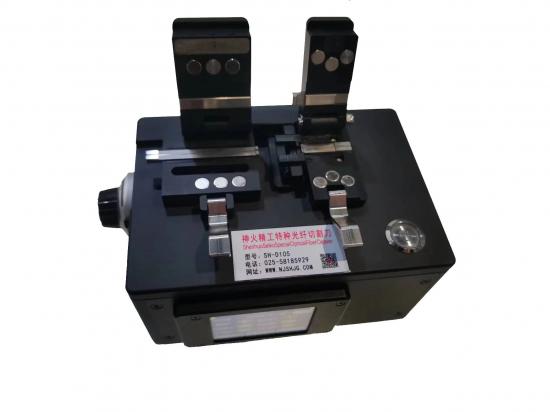

SH-D105 Large Diameter Optical Fiber Cleaver

S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with  S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter<250 μm );16mm (Coating diameter 250~1000 μm) Fiber magnification X or Y single fiber image:300X, X and Y double image 150X Operating condition Temperature:-10C--+50°C; Humidity:<95%(Noncondensing); Altitude:0-5000m, Wind: max, 15m/s Power supply AC adapter,inputAC100-240V(50/60HZ)，output: DC13.5V/4.5A； Battery capacity：5200mAh Li-battery,11.1V

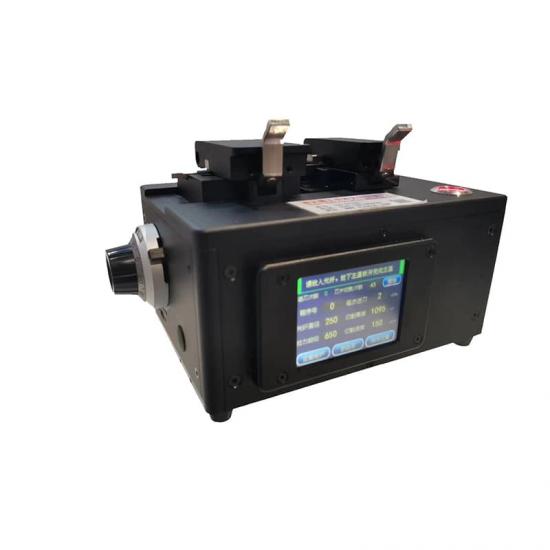

SH-D106 large core fiber cutting cleaver can be used to cutlarge core fiber and fiber buncher.Users can easily cutdifferent types of fiber and buncher by simply setting thetension ofthe fiber and advancing the head of blade beforecutting.The machine not only has the cutting stability requiredfor production, but also has the characteristics of flexible debugging required for research and development. Features： 1.High precision, high speed,high stability and high quality. 2.4.3-inch touch screen LED color display, multiple language modes can be customized. 3.Cleaving Range: Maximum Cladding diameter 1250 um,minimum Cladding diameter 80um; parameters are customizable. 4.Parameters and cutting ways can be widely regulated, which changesthe cutting result. 5.Suitable for variety fibers splicing, such as photonic crystal fiber, doped fiber, glass tube, capillary tube.

T0X series optical fiber recoater is the latest high-precision optical fiber recoater, including four types (HXGK-T01---HXGK-T04), suitable for various types of ordinary fiber, ribbon fiber and polarization maintaining fiber. Products are well-crafted with stable quality and easy to operate. They have a wide range of applications in scientific research, fiber optic sensing, fiber optic gyroscopes, optical switches, fiber optic lasers, fiber optic communications, etc. They are designed as multi-functional coating machines for fiber optic recoating repair. The coating length of this optical fiber recoater is 50 mm or 100 mm (customizable type), used to repair the outer coating layer of fusion-spliced optical fibers, to restore the physical and optical characteristics of the fibers, and to enhance the flexibility of the fibers to protect the bare fiber and fusion point.

1. Six motor core to core, core adjustment, center alignment 2. Artificial calibration and Real-time ARC automatic calibration are optional. 3. The same optical fiber and different opticalfibers are connected in the center. 4.Electrical discharge ARC makes realtime compensationaccording to the pressure, environment and temperature parameter. 5.Two cameras can observe X axes and Y axes at the same time. 6. High resolution 5 inch color LED touch screen, multi languages are customizable. 7.2 USB ports: one for data transmission,one for power supply of LED light

Special wavelength OTDRs are reliable instruments used to measure the characteristics of optical fibers with large core diameters.This series of products are compact, light transmission quality and achieves the measurement results after the results processing,archiving, printing. The person who installs and maintains the fiber optic cable by looking at the "incident point"of fiber optic test graph to point out these irregularities in the fiber, locate the positions, measure the attenuation and the uniformity of damage and attenuation.

1.Easy to use,automatically longitudinal strip,high quality striping,stable and efficient 2.The blade is durable and easy to replace 3.Adopt high-precision linear guide and motor directly drive striping way to ensureno damage to the fiber

This product is used, please contact our sales manager for more details!!!

High cost performance. OTDR+OPM+VFL+LS+Multimeter+iOT+Event Map+Wifi+. Multiple choices of wavelengths and dynamic ranges best meet the requirement of the users.
