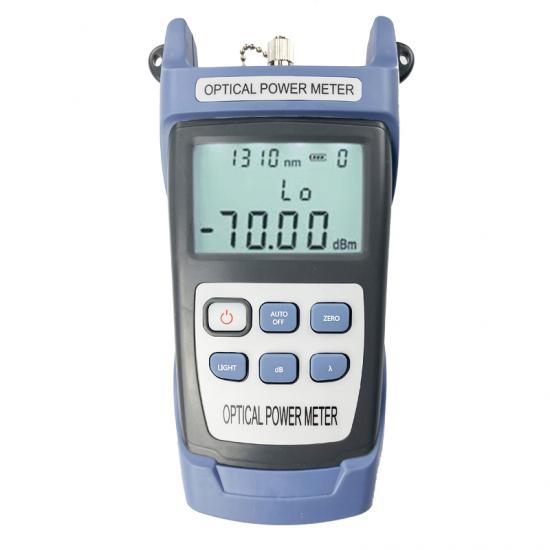

Pocketsize Optical Power Meter S300

Self Calibration.

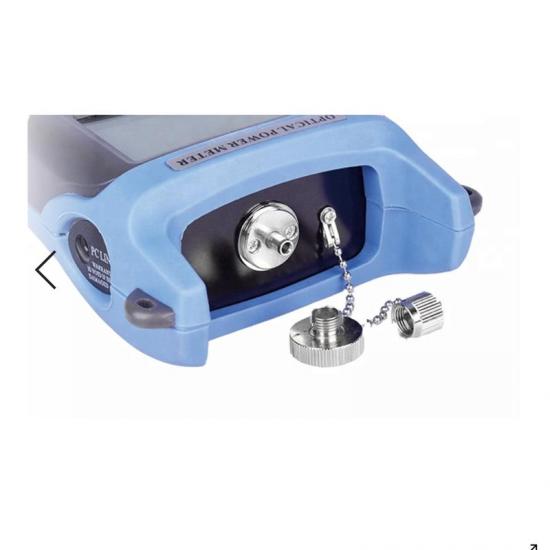

FC, SC, and ST interfaces.

Lower power consumption design, long standby time.

  • Item NO.:

    S300
  • Order(MOQ):

    1
  • Payment:

    T/T, Paypal, Credit Card, Western Union, etc.
  • Product Origin:

    China
  • Color:

    Standard
  • Shipping Port:

    Nanjing/Shanghai/Guangzhou/Shenzhen/etc.
  • Lead Time:

    in 2 Working Days
  • Product Detail

Introduction

S300 Power Meter is specifically designed for the  network construction and maintenance. It’s a useful site test tool for the engineers and maintenance operators of network of FTTX.


Features

  • Support linear mw and nonlinear index dBm simultaneous display
  • Support automatic shutdown
  • Support backlight selection
  • Support user self-calibration
  • Support restore factory settings
  • Supports FC, SC, and ST interfaces
  • Working time is longer than 120 hours


Specifications

Wavelength range

800nm~1700nm

800nm~1700nm

Optical Connector

FC/SC/ST

FC/SC/ST

Detector type

InGaAs

InGaAs

Measurement range

-70dBm~+10dBm

-50dBm~+26dBm

Accuracy

±5%

Standard wavelength

850/980/1300/1310/1490/1550/1625/1650nm

Display resolution

mw: 0.1%, dBm: 0.01

650nm VFL (optional)

2mw/5mw/10mw/20mw/30mw/50mw

Laser source (optional)

850/1300/1310/1490/1550/1625/1650nm

Laser source stability

0.02dB

Working temperature

-10~+60℃

Storage temperature

-30~+70℃

Auto off time

10 min

Battery continuous operating time

≥120 h

Structure size

186mm*100mm*50mm

Power

Three section 5 batteries/Lithium battery (optional)

Instrument net weight

240g
