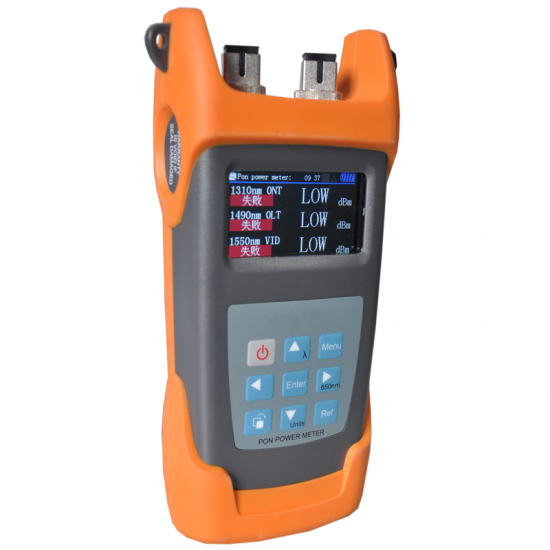

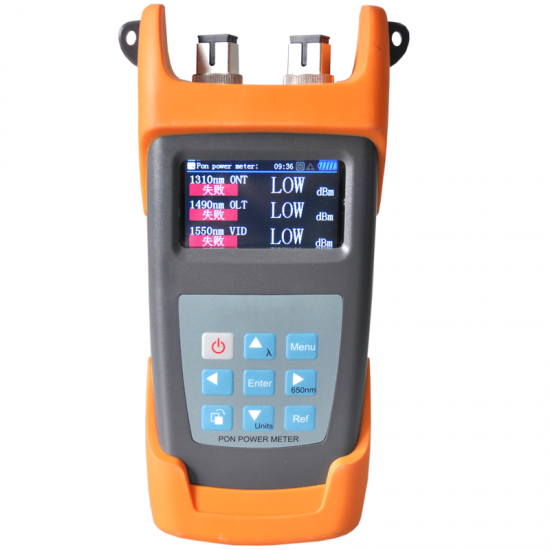

Designed for PON network construction and maintenance. It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network.
XGPON/10GEPON power meter is a new tester for FTTX network.
It has all the functions of traditional PON tester.
Such as 1490nm/1550nm/1577nm (downlink spectrum) and 1270nm/1310nm (burst mode uplink spectrum) optical fiber.
Item NO.:
S317Order(MOQ):
1Payment:
T/T, Paypal, Credit Card, Western Union, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 2 Working DaysIntroduction
is an ideal tester for PON network and maintenance.
Features
Compatible with EPON, GPON and next generation 10G-EPON/XG-PON power measurement functions
5 wavelength power value simultaneous measurement display
The instrument can set the measurement threshold to determine the pass, warning, fail state
Support VFL and standard OPM module function
Data storage function up to 1000
Optional end-face microscope tester
Specifications
|
G/E PON Module |
||||
|
Wavelength |
1310nm |
1490nm |
1550nm |
|
|
Range（dBm） |
+13～-40 |
+13～-50 |
+25～-50 |
|
|
Spectral band pass |
1310±20 |
1490±10 |
1550±10 |
|
|
Isolation |
1490nm>40 |
1310nm>40 |
1310nm>40 |
|
|
XGPON /10GEPON Module |
||||
|
Wavelength |
1270nm |
1577nm |
||
|
Range（dBm） |
+10～-40 |
+10～-40 |
||
|
Spectral band pass |
1270±20 |
1577±20 |
||
|
Isolation |
1577nm>40dB |
1270nm>40dB |
||
|
Other |
||||
|
In penetration mode |
≤1.5dB |
|||
|
Uncertainty |
≤0.5dB |
|||
|
Resolution |
0.01dB |
|||
|
Threshold setting |
10 |
|||
|
Data storage |
1000pcs |
|||
|
Working temperature |
-10℃～+60℃ |
|||
|
Relative humidity |
0%～95%RH |
|||
|
Connector type |
SC/APC (FC/APC optional) |
|||
|
Communication port |
USB |
|||
|
Power supply |
3pcs AA1.5V battery |
|||
|
Working time |
Working time≥20H，standby time≥60H |
|||
|
Size |
L*W*H 192mm×102mm×50mm |
|||
|
Weight |
420g |
|||
Designed for PON network construction and maintenance. It can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network.
