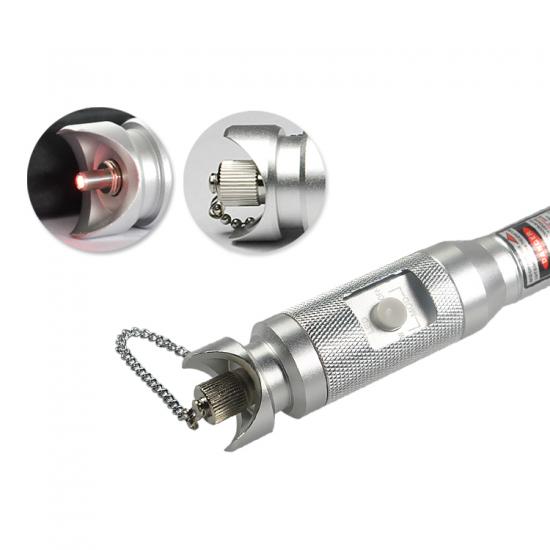

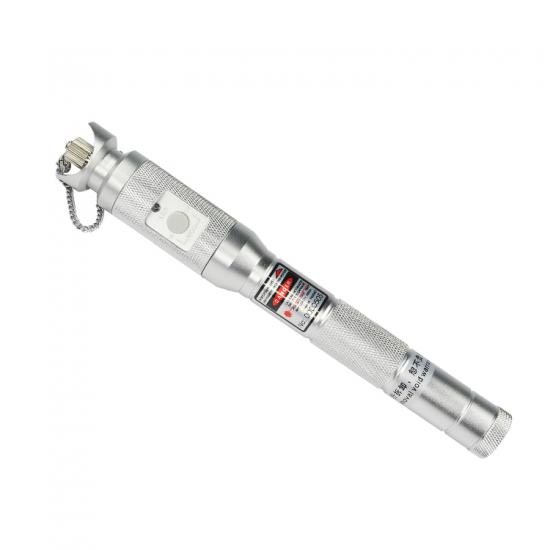

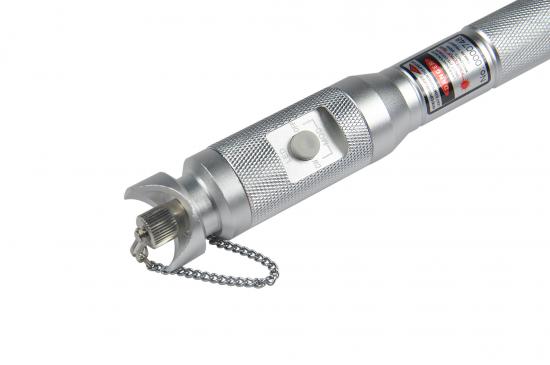

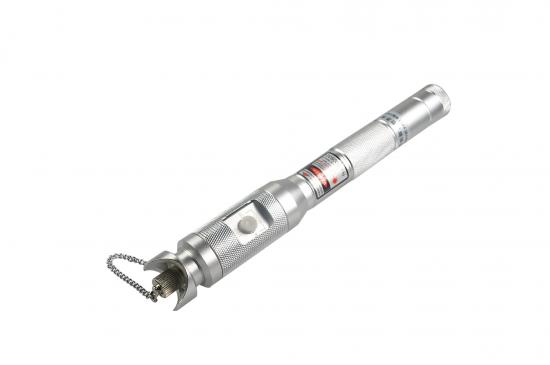

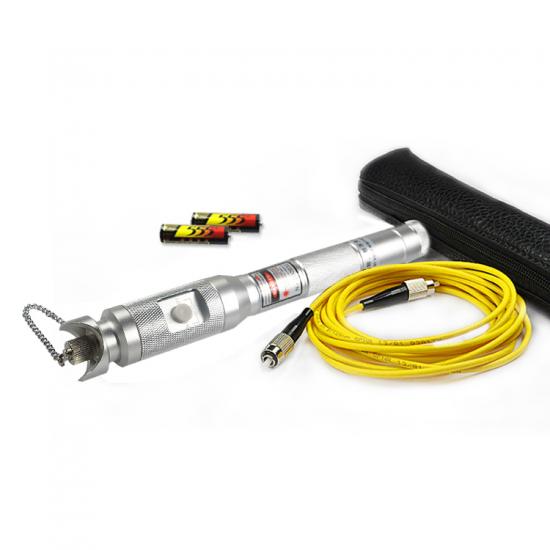

Fast locate the broken point. Cheap and Quality Vfl Optical Fiber Visual Fault Locator.
Small size, easy to field test High quality pen type visual fault locator
Easy identification of fiber break, bend, you can protect the fiber layer.
Item NO.:
S208Order(MOQ):
1Payment:
T/T, Paypal, Western Union, Moneygram, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 3 Working Days
Introduction
S208 Visual Fault Locator uses the DFB-LD as the emitting component. Driven by constant current source, the indicator can emit stable red laser. The product can be used to inspect fiber failure when they connect with optical interface and be inserted into single mode or multi mode optical fiber. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
Applications
Features
Specifications
|
Model |
S208 |
|
Central wavelength |
650nm±10nm |
|
Emitter type |
FP-LD |
|
Output power |
5mw, 10mw, 20mw, 30mw, 40mw |
|
Optical connector |
2.5mm universal connector, for 1.25mm connectors, FC (Male)-LC. (Female) converter can be provided on request |
|
Operating model |
Both CW and Pulse available |
|
Pulse frequency |
3Hz to 9Hz |
|
Power supply |
2AA alkaline batteries |
|
Operating temperature |
-20°C to 60°C |
|
Storage temperature |
-40°C to 85°C |
|
Dimension |
-FL-002 Φ23 X 190 |
|
Weight |
184g (without battery) |
Fast locate the broken point. Cheap and Quality Vfl Optical Fiber Visual Fault Locator.
Rugged and waterproof design. Pocket size and light weight, easy to use.
Long battery life Portable and rugged, easy to use 2.5mm universal connector, for 1.25mm connectors,FC (Male)-LC (Female) convertor can be provided on requests.
Equipped with LED lights for easy Interface: SC, FC, ST, available FC-LC converter Mini compact, stable light source, LED lighting, automatic shutdown
Upgraded high accuracy fiber identifier S506 integrates VFL and LED lighting function,It is one of the necessary tools for fiber maintenance.Fiber identifier can detect any position of the single mode and multi mode fiber.
Tool kits for cabling instruction. It includes all the most frequently need tools and supplies required for cable sheath removal and fusion splicing
XGPON/10GEPON power meter is a new tester for FTTX network. It has all the functions of traditional PON tester. Such as 1490nm/1550nm/1577nm (downlink spectrum) and 1270nm/1310nm (burst mode uplink spectrum) optical fiber.
S400 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~500um) with S400 LDF Specialty Fiber Fusion Splicer. Specifications Model S400LDF Applicable fiber SM(Single mode); MM(Multi mode); DS; NDZS Dimension Weight 2.4KG (including battery) Return loss >60dB Electrode life Typical 3000 times discharge Fiber diameter Cladding diameter:125~500μm Heat-shrinkable tube 60mm、40mm and a series of miniature tube Data storage 10000 groups data records and 100 group images Typical heating time 20seconds (60mm heating tube) Tension test Typical 2N Typical splice time 8-10 seconds Typical splice loss 0.02dB(SM); 0.01dB(MM); 0.04(DS); 0.04(NZDS) Cutting length 8~16mm(Coating diameter<250 μm );16mm (Coating diameter 250~1000 μm) Fiber magnification X or Y single fiber image:300X, X and Y double image 150X Operating condition Temperature:-10C--+50°C; Humidity:<95%(Noncondensing); Altitude:0-5000m, Wind: max, 15m/s Power supply AC adapter,inputAC100-240V(50/60HZ)，output: DC13.5V/4.5A； Battery capacity：5200mAh Li-battery,11.1V
