High Precision Fiber Cleaver 100% original from Fujikura Used with splicing machine ftth cable cutting tools optical fiber cleaver cable
Applicable to cladding diameter 80μm~1250μm fibers.
More than 15000 times blade cutting lifetime
Automatic clamping system with programmable force.
Item NO.:
SH-D106Order(MOQ):
1Payment:
T/T, Paypal, Western Union, Moneygram, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：
in 3 Working Days

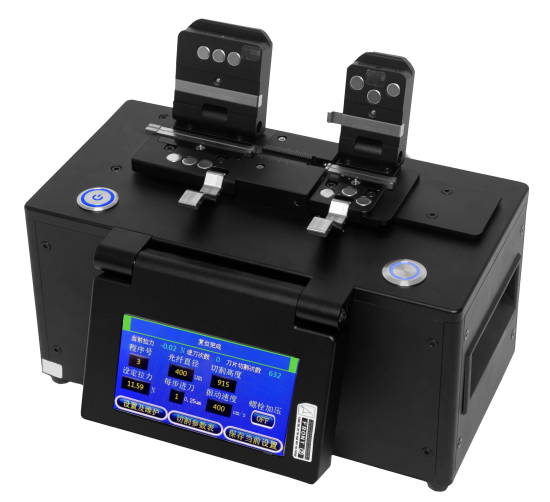

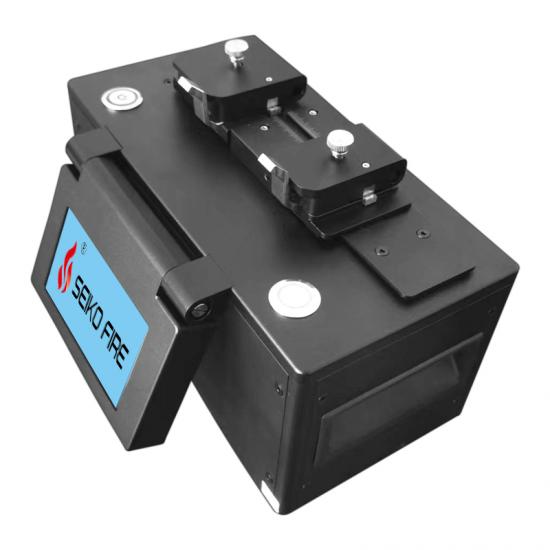

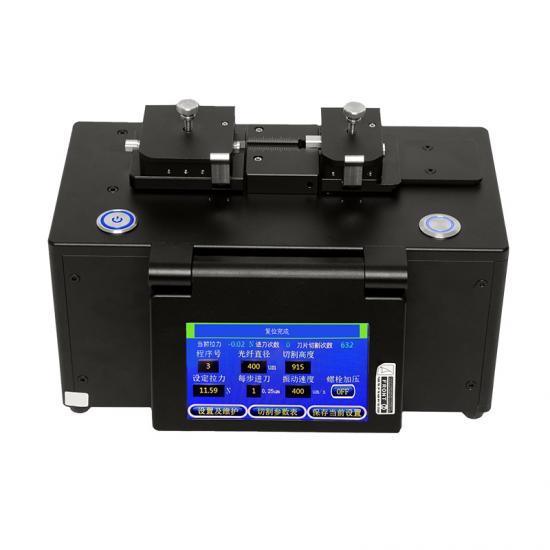

SH-D106 large diameter optical fiber cleaver can be mainly used for cutting large
diameter fibers and optical fiber combiner. Users can easily cut different types of optical fibers and combiners by setting the pulling force of the optical fiber and advancing the blade in advance. The machine not only has the cutting stability needed for production, but also has the characteristics of flexible debugging needed for research and development.
Features
|
Applicable optical fiber |
Glass optical fibers, capillary |
Number of fibers |
Single |
|
Cladding diameter |
80um~1250um |
Coating diameter |
160um~3000um |
|
Cleaving length |
4mm~40mm |
Cutting angle |
≤0.4°(cladding 400um) |
|
Cutting depth |
≤2um(cladding 400um) |
Blade life |
Typical 15000 fibers (Cladding diameter 125µm） |
|
Screen |
4.3inch |
Power supply |
Input：110-240V~50/60Hz 1.4A output:24V2.5A |
|
Size |
244*143.5*152mm |
Weight |
5Kg |
|
Operation Condition |
0 to 95% RH and 0 to 45℃ Altitude below 3000 km |
Storage environment |
0 to 95% RH and -40 to 80℃ |
High Precision Fiber Cleaver 100% original from Fujikura Used with splicing machine ftth cable cutting tools optical fiber cleaver cable
Professional manufacturer, 100% tested. Has Superior Blade Height and Rotational Adjustment.
High Precision Cleaves Compact body& light weight Used with splicing machine ftth cable cutting tools optical fiber cleaver cable
Handheld & Stable performance Fiber Optic Cleaver. Suitable for 0.25mm~0.9mm fiber coating diameter.
Cheap High-precision FTTH fiber cutter. Simple operation with wide lid opening.
Applicable for up to 12-fiber cleaving. Automatic cleaving blade rotation via wireless communication. Original CT50 optical fiber cleaver for ribbon fusion splicer.
High precision fiber cutting. Lightweight and hand held design. Smart design of pressure pads preventing the fiber from damage by the return of the blade carriage.
Composed with high quality metal blades, more durable. High precision rail design, ensure the integrity of the fiber.
