Classic fiber splicing machine. 4.3-inch touch screen, small size, easy to carry. Dust-resistant, water-resistant, shock-resistant, greater environment adaptability.
Item NO.:
S400LDFOrder(MOQ):
1Payment:
T/T, Paypal, Western Union, Moneygram, etc.Product Origin:
ChinaColor:
StandardShipping Port:
Nanjing/Shanghai/Guangzhou/Shenzhen/etc.Lead Time：

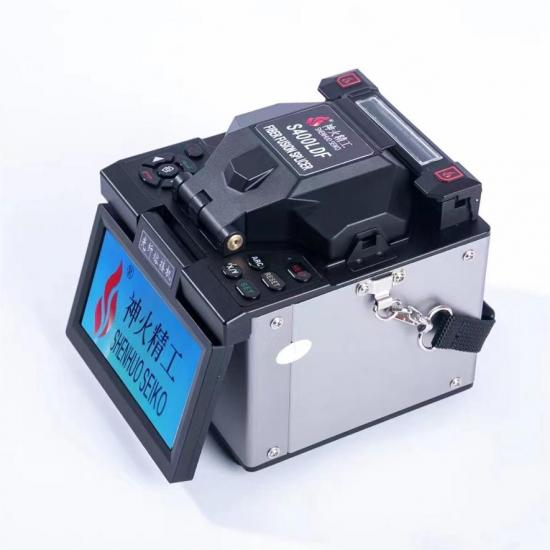

in 3 Working DaysSeikoFire S400 LDF Core Alignment Fusion Splicer offers powerful performance delivering fast, low-loss and reliable optical fiber splicing even under harsh environmental conditions. By combining speed, precision, durability, portability and state of the art communication methods all in one unit, this fusion splicing machine is suitable for repairing laser products and research and development of laser medical and cosmetology.
Features
Specifications
|
Model |
S400LDF |
|
Alignment method |
Core to Core |
|
Applicable fiber |
SM(G.652),MM(G.651), DS(G.653), NZDS(G.655) |
|
Cladding diameter |
125~400µm( can customized) |
|
Cutting length |
8~16mm（coating diameter<250µm) 16mm(coating diameter 250µm~1000µm) |
|
Typical splice loss |
SM:0.02dB,MM:0.01dB, DS:0.04dB, NZDS: 0.04dB |
|
Return loss |
> 60dB |
|
Operation mode |
Manual/ Semi-automatic/Automatic |
|
Typical splice time |
≤9 seconds |
|
Typical heating time |
≤30 seconds（60mm heating tube） |
|
Tension test |
Typical 2N |
|
Fiber magnification |
X or Y single fiber image 220X, X and Y double image 110X |
|
Viewing display |
Dual high sensitivity camera, 5 inch touch screen. |
|
Data storage |
10000 groups data records and 200 group images |
|
Battery capacity |
6800mAh Li-battery, 300 cycles splicing and heating |
|
Power supply |
AC adaptor, input: AC100-240V(50/60HZ), output: DC13.5V/4.5A |
|
Electrode life |
> 3000 times discharge |
|
Terminals |
2 USB ports: software upgrading, records exporting/power supply for LED light |
|
Operating condition |
Altitude:0-5000m,Humidity:0-95%, Temperature: -10℃ -- +50℃; Wind: max. 15m/s |
|
Dimension/ Weight |
130mm(L)×154mm(W)×132mm(H) 2.0kg (including battery) |
Standard Accessories
|
Name |
Model |
Quantity |
|
Machine |
S1200LDF |
1 |
|
Fiber stripper |
SH-06 |
1 |
|
Belt |
SH-04 |
1 |
|
Charger |
SH-01 |
1 |
|
Spare electrodes |
SH-02 |
1 |
|
Cooling tray |
SH-03 |
1 |
|
Carrying case |
SH-05 |
1 |
|
Specification |
|
1 |
Optional Accessories
|
Name |
Model |
|
Mobile power supply |
SH-S80 |
|
Large Diameter Fiber cleaver |
SH-D106 |
|
GPS function |
|
|
LED Light |
|
