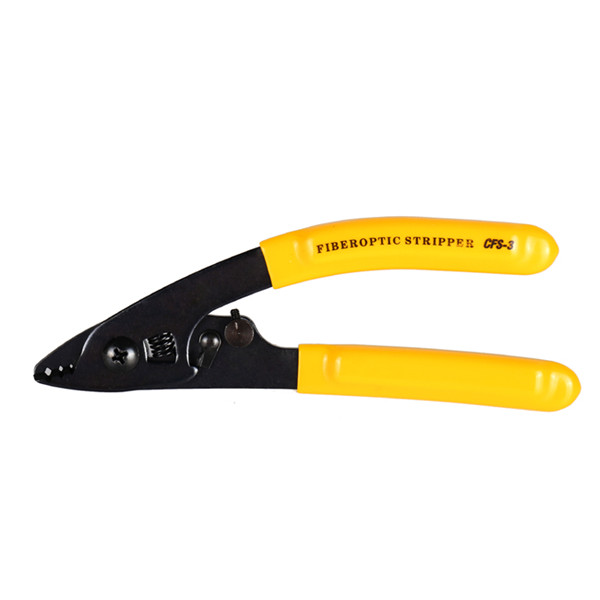

How To Use Our Fiber Stripper CFS-3?

October 30 , 2020

The Operation Steps of Fiber Stripper CFS-3

1.Strip the fiber following steps 1 through 3 below.
Step 1 : Insert fiber into the opening of the tool.
Step 2 : Close the tool squarely around the fiber.

Step 3 : Draw the tool along the fiber using thumb pressure while keeping the tool perpendicular to the fiber.

2.Clean the stripped fiber and terminate connection per connector splice or connector manufacturer’s instructions.
Note: When stripping extended lengths of buffer coating, it is recommended that several short strips be made to achieve the desired length. This will relieve any pressure caused by the stripped buffer cladding as it accumulates ahead of the cutting edge.
Clean the V opening of the tool on a regular basis with 99% Isopropyl Alcohol or an Alcohol Prep Wipe to insure proper operation. Failure to do so could cause the fiber to break.

Caution: The fiber optic stripper should not be opened beyond factory pre set limits. Forcing open the tool or bypassing the open position stop will result in loss of factory pre-set calibration and damage the tool.

Fiber Optic Stripper should be kept clean and dry to eliminate surface corrosion.

3-Hole Fiber Stripper
