How to clean the end face of optical fiber?

February 24 , 2021

Pentype One-Click Fiber Cleaner is loved by many users because of its convenient use. When using, you only need to insert the optical fiber cleaner into the connector, and then gently push it inward. When you hear the "Ka Ta" sound prompt, pull out the cleaner, and the cleaning work is completed. Therefore, it can also be called a one click optical fiber end face cleaner.

In order to make it convenient for you to check, use the 2.5mm pentype one click fiber cleaner to clean the SC female connectors in the junction box and the SC connector on the fiber jumper.

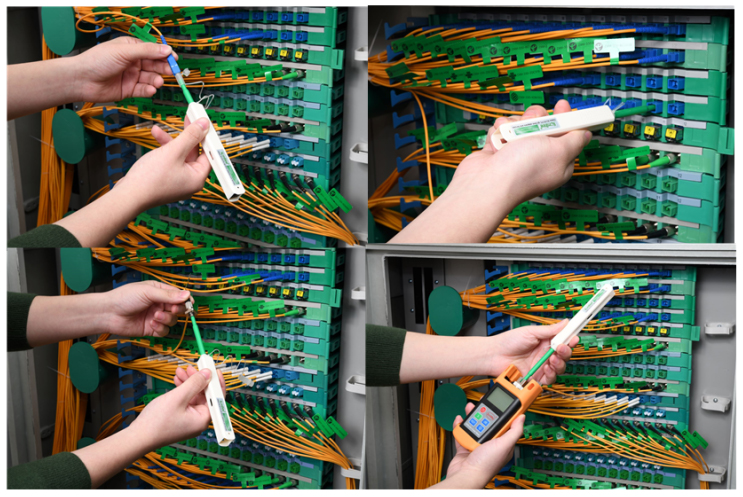

When cleaning the optical fiber box female connectors:

Clean the SC female connectors in the fiber box;

Remove the cap on the optical fiber cleaning pen and insert the head end of the cleaning pen into the adapter;

Push forward. When you hear the sound of "Kata", the cleaning work is completed;

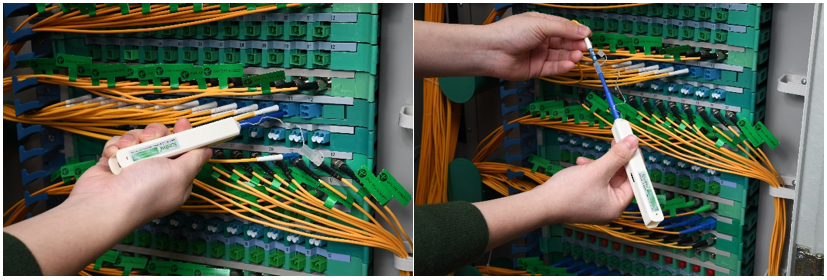

When cleaning the fiber jumper connector insert:

Clean the SC connector insert on the optical fiber jumper;

Open the cover of the cap and insert the cleaning pen into the connector;

Push forward. When the sound of "jam" is heard, the end face cleaning is completed. (same operation for cleaning st, FC and other connectors)


Pentype One-Click Fiber Cleaner

In contrast, 1.25mm pentype one click fiber cleaner is suitable for LC and MU connectors. When using seikofire pentype one click fiber cleaner, it should be inserted into the adapter or plug at a vertical angle to avoid inclined insertion and too much force when pressing the fiber cleaner, so as to avoid damaging the head end of the cleaner or the plug in the adapter.

Pentype One-Click Fiber Cleaner
