Narrow Linewidth Semiconductor Laser
1. High-precision current source driving,excellent beam shaping module,
and multi-stage temperature control design
2. Excellent beam quality(M^2<1.3)and power stability(RMS<0.2%)
3. Can be integrated with a laser frequency stabilization module according
to actual usage requirements to ensure long-term frequency stability (9<2MHz)
4. Widely used in frontier fields such as optical quantum communication,quantum sensing ,atomic clocks,squeezed light ,preceision spectroscopy,and optical metrology
5.User-friendly intelligent operating system with a simpler interface
|

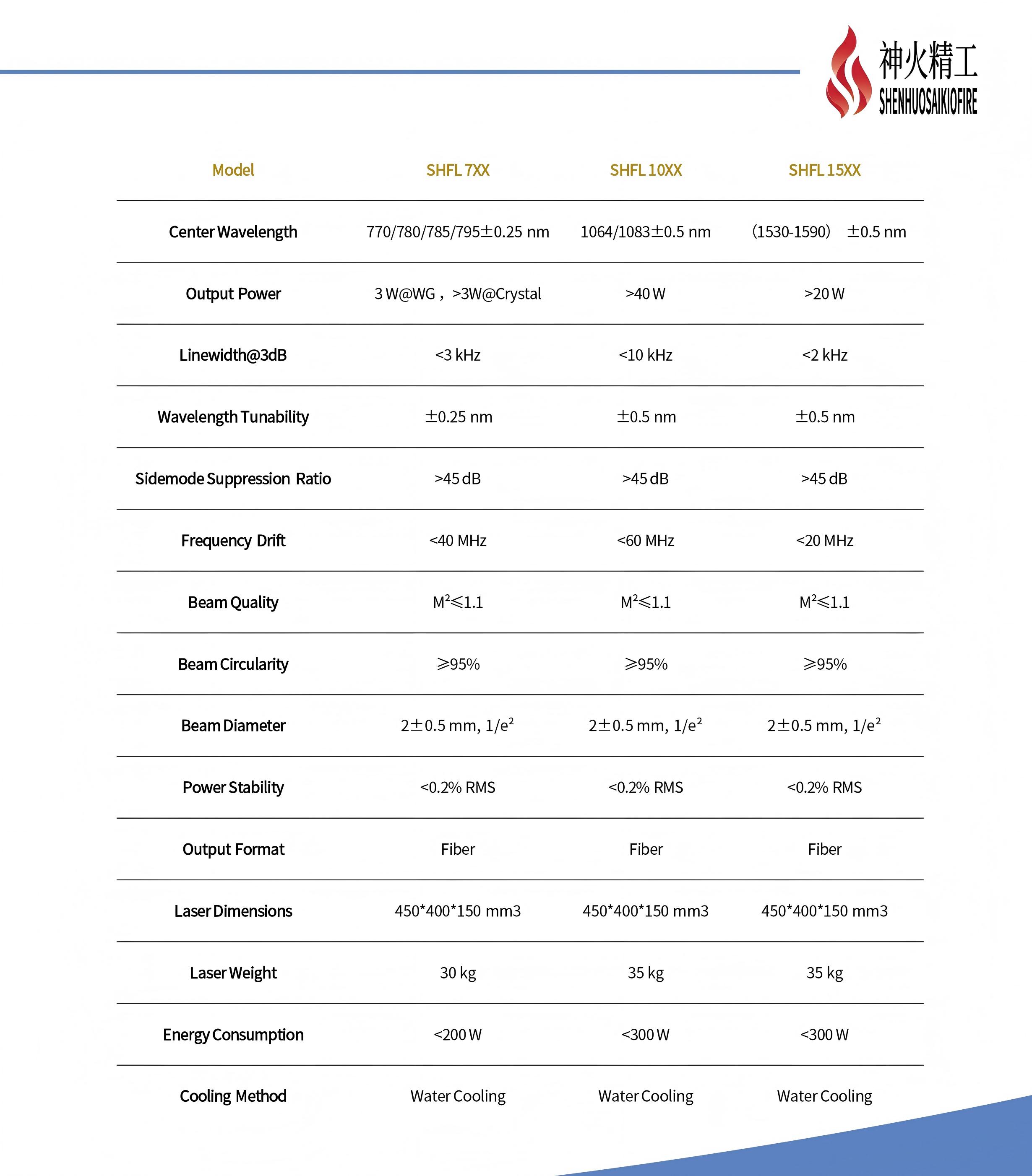

Model |
SHFL7XX |
SHFL10XX |
SHFL15XX |
|
Center Wavelength |
770/780/785/795±0.25 nm |
1064/1083±0.5 nm |
(1530-1590)±0.5 nm |
|
Output Power |
3W@WG,>3W@Crystal |
>40W |
>20W |
|
Linewidth@3dB |
<3 kHz |
<10 kHz |
<2 kHz |
|
Wavelength Tunability |
±0.25 nm |
±0.5 nm |
±0.5 nm |
|
Sidemode Suppression Ratio |
>45dB |
>45dB |
>45 dB |
|
Frequency Drift |
<40 MHz |
<60 MHz |
<20 MHz |
|
Beam Quality |
M²≤1.1 |
M²≤1.1 |
M²≤1.1 |
|
Beam Circularity |
≥95% |
≥95% |
≥95% |
|
Beam Diameter |
2±0.5mm,1/e² |
2±0.5mm,1/e² |
2±0.5mm,1/e² |
|
Power Stability |
<0.2%RMS |
<0.2%RMS |
<0.2%RMS |
|
Output Format |
Fiber |
Fiber |
Fiber |
|
Laser Dimensions |
450*400*150 mm3 |
450*400*150 mm3 |
450*400*150 mm3 |
|
Laser Weight |
30 kg |
35kg |
35kg |
|
Cooling Method |
Water Cooling |
Water Cooling |
Water Cooling |
|
Energy Consumption |
<200W |
<300W |
<300 W |
