NEW Fiber Identifier With VFL Function

June 07 , 2021

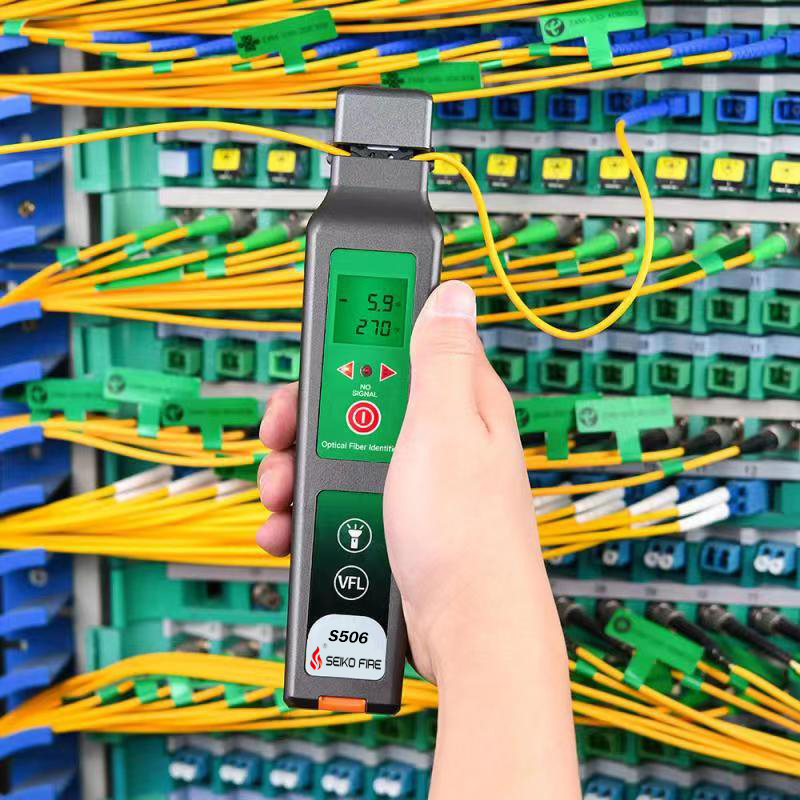

Upgraded high accuracy fiber identifier S506 integrates VFL and LED lighting function,It is one of the necessary tools for fiber maintenance.Fiber identifier can detect any position of the single mode and multi mode fiber.
With the fiber identifier to identify the fiber on the line, you can identify the fiber power and 3 kinds of signal frequencies, and there will be a buzzer sound when identifying the frequency.Display the signal direction via left and right direction light and to make prompt judgment.VFL adopt 2.5mm universal connector and output power is up to 10mW,It can detect fiber break or bending problems within 10km,and it supports pulse and continuous wavelength operation.And it equipped with LED light,convenient for you to work in the dark.

Products characters and functions:

Universal back clip design,suitable for 0.25/0.9/2.0/3.0 fiber
LED backlit display,suitable for various environment and no auxiliary lighting required
Testing sensitivity -40dBm to 10 dBm
Strong and stable light source, strong penetrating power
Be equipped with LED light,more convenient to work in the dark

Built-in VFL,2.5mm universal connectors,strong stability,testing distance is up to 10KM
