In the optical communication system, it was found that the optical loss doubled for no reason, even the optical signal was cut off, and the network connection failed. After investigation, it was found that the "culprit" was actually a large number of invisible particles, dust, and dust on the end face of the optical fiber. Dirt such as oil stains.
Therefore, the cleaning of the fiber end face should not be neglected and sloppy. SeikoFire Optical Fiber Cleaner is a new type of high-performance and high-efficiency optical fiber cleaning tool. It can remove dust, oil and other dirt on the end face without damaging or scratching the end face. Suitable for cleaning APC and UPC joints, simple and precise cleaning. The optical fiber cleaner pen is made of anti-static resin raw materials, dust-free cleaning wire and cleaning reagents. It uses artificial driving force to rotate the head of the cleaner to achieve the effect of cleaning the end surface.
Optical fiber cleaner pen appearance function

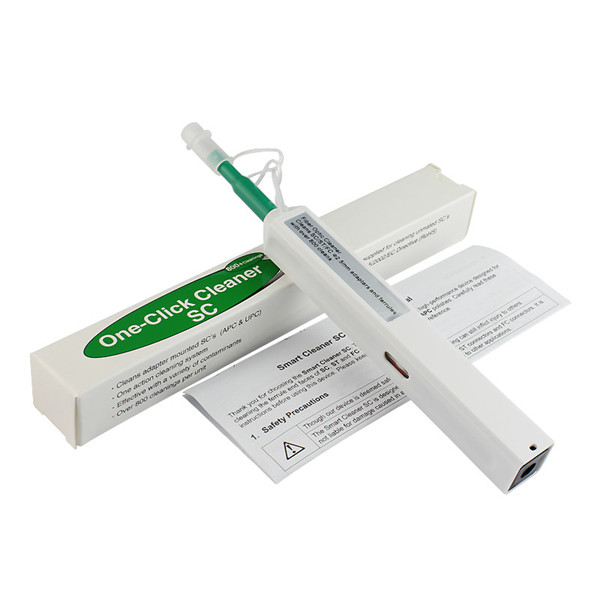

SeikoFire optical fiber cleaner pen is mainly composed of head end, nozzle, cleaner body, etc. It has two types of KOC-250 and KOC-125 (2.5mm, 1.25mm cleaning pen), and the appearance of the 2.5mm cleaning pen is white and green. , 1.25mm cleaning pen with white and blue design. The 2.5mm cleaning pen is mainly used to clean SC/ST/FC connectors with a ferrule diameter of 2.5mm, and the 1.25mm cleaning pen is mainly used to clean LC/MU connectors with a ferrule diameter of 1.25mm.
SeikoFire optical fiber cleaner pen can be rotated 180° to clean, and the cleaning frequency can reach more than 800 times. It can be cleaned with one touch. It can automatically replace the cleaning wire area to avoid secondary pollution. It can not only clean the end surface oil, dust, etc. Contaminants, and the anti-static resin material has no secondary pollution, simple and convenient operation, and has a very strong ability to clean dirty surfaces.
How to use fiber cleaner pen
The optical fiber cleaning pen is loved by many users because of its convenient use. When using, you only need to insert the fiber cleaner into the connector, and then gently push it in. When you hear the "Kata" sound prompt, pull out the cleaner, and the cleaning work is completed, so it can also be called a Press-type fiber end face cleaner.
To use a 2.5mm optical fiber cleaning pen to clean the SC female connector of the transfer box and the SC connector on the optical fiber jumper.
When cleaning the female connector of the optical fiber transfer box:
①Clean the SC female connector in the transfer box;
②Remove the cap on the optical fiber cleaning pen, and insert the tip of the cleaning pen into the adapter;
③ Push forward when you hear the sound of "Kata", the cleaning work is completed;
When cleaning the fiber jumper connector ferrule:
①Clean the SC connector ferrule on the fiber jumper;
②Open the cover of the cap and insert the cleaning pen into the connector;
③ Push forward when you hear the sound of "Kata", the end face cleaning is completed. (The same operation for cleaning ST, FC and other connectors)
The application range of SeikoFire 2.5mm optical fiber cleaning pen is not only suitable for cleaning the female head of the optical fiber transfer box and the cleaning of the fiber jumper ferrule, but also for the cleaning of the inner ferrule of the adapter and the inner cleaning of the optical power meter test instrument.
In contrast, the 1.25mm fiber optic cleaning pen is well suited for LC and MU connectors. When using the SeikoFire one-touch optical fiber end-face cleaning pen, insert it into the adapter or ferrule at a vertical angle to avoid slanted insertion and do not use too much force when pressing the cleaning pen, so as not to damage the tip of the cleaner or damage the plug in the adapter. core.
